Architect Resources
Our Architect Resource Center provides technical documentation and specification materials for modern aluminum window and door systems. Architects, builders, and designers can download detailed product information, configuration guides, and performance data for bifold doors, sliding door systems, and large architectural glass openings.
.png)
Technical Resources for Architects
Everything you need to specify with confidence: sizing, performance, finishes, and installation guidance.
.png)
Crystal Series Pivot Door

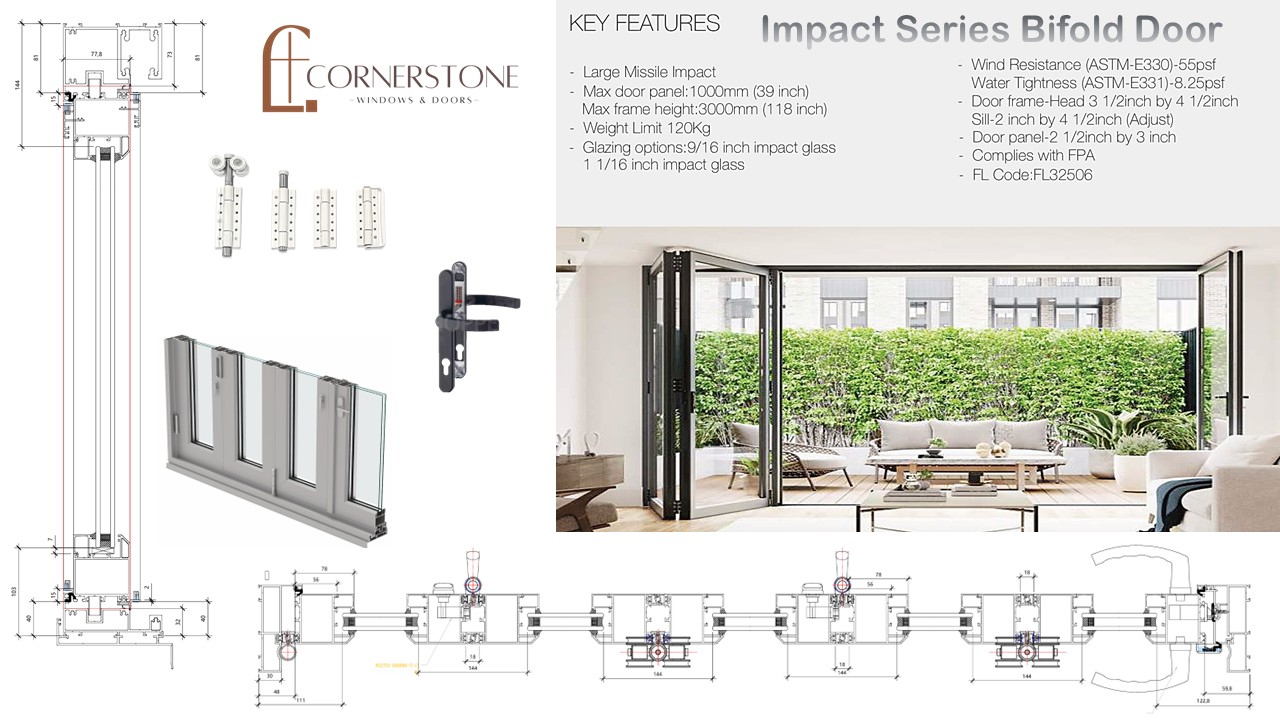

Impact Series Bifold Door
Aeris Sliding Door
Interior Bifold Door
Vision Series Fixed Window
Vision Series Bifold Door
Vision Series French Door
Vision Series Single Door

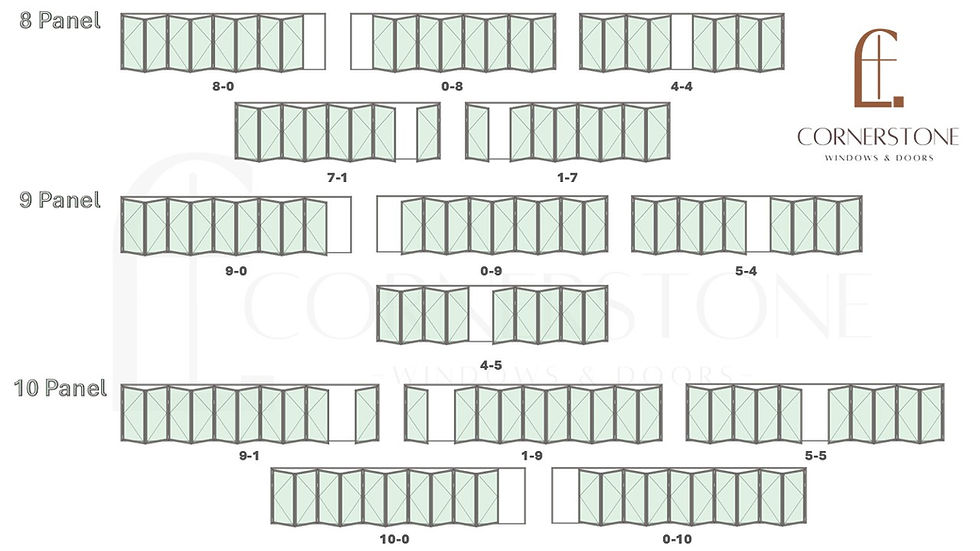

Bifold Door Configuration
Custom sizes and corner meet-post options available.
Choose the layout that fits the opening. Our team can help you optimize traffic flow, weather exposure, and hardware placement.
Bifold Door Technical Configuration Guide
Choose the layout that fits the opening. Our team can help you optimize traffic flow, weather exposure, and hardware placement.
Panel # Min. 2 Panel # Max 10
Frame Max Height 140"
+ transome avail.
.jpeg)
Wood-Grain Film Coating
Frame Min. Width 60"
Frame Max Width 360"
Glass Options & Finishes
Custom sizes and corner meet-post options available.
Choose the layout that fits the opening. Our team can help you optimize traffic flow, weather exposure, and hardware placement.
Sliding Door Systems
Architectural sliding door systems designed for large openings, clean sightlines, and seamless indoor-outdoor living.
.png)
Aeris 5 Panel
Architectural sliding door systems designed for large openings, clean sightlines, and seamless indoor-outdoor living.
Aeries
.png)
The portfolio includes three systems — Aeris Sliding Doors, Lift & Slide Systems, and the Vision Series Minimal Frame System — each engineered for different opening sizes, panel weights, and performance requirements.
Aeris Sliding System
Versatile multi-panel sliding door system designed for residential and light commercial applications with smooth operation and balanced sightlines.
Aeris 2 Panel
Lift & Slide Systems
.png)
.png)
Heavy-duty sliding door system engineered for oversized openings and maximum weather protection, featuring a unique lift mechanism that allows panels to glide effortlessly even at maximum weights.
Features List:
-
Panels up to 350 Ibs per panel
-
Lift mechanism for effortless operation
-
Superior weather sealing
Technical Specs:
-
Heavy-Duty Hardware System / German-engineered lift and slide mechanism
-
Multiple -Seal Gasket System / Superior air and water infiltration resistance
-
Maximum Panel Size / Width: 96" per panel | Height: 118"
Vision Series
Ultra-slim frame sliding system designed for maximum glass exposure and uninterrupted views, perfect for modern architectural designs requiring minimal sightlines and maximum natural light.
.png)
.png)
.png)
Features List:
Technical Specs:
-
Frame Profile / 2" visible frame width /
Minimal sightline design -
Finish Options / Powder coated aluminum |
Custom RAL color matching / Wood-grain
film coating available -
Glass Options / Clear | Tinted | Frosted |
Low-E / Double and triple pane configurations
-
Ultra-slim 1.4" sightlines
-
Maximum glass exposure
-
Hidden roller system
-
Custom finishes available
Modern architecture deserves clean lines, expansive glass, and systems that disappear into the view.
.jpeg)
.jpeg)
.jpeg)

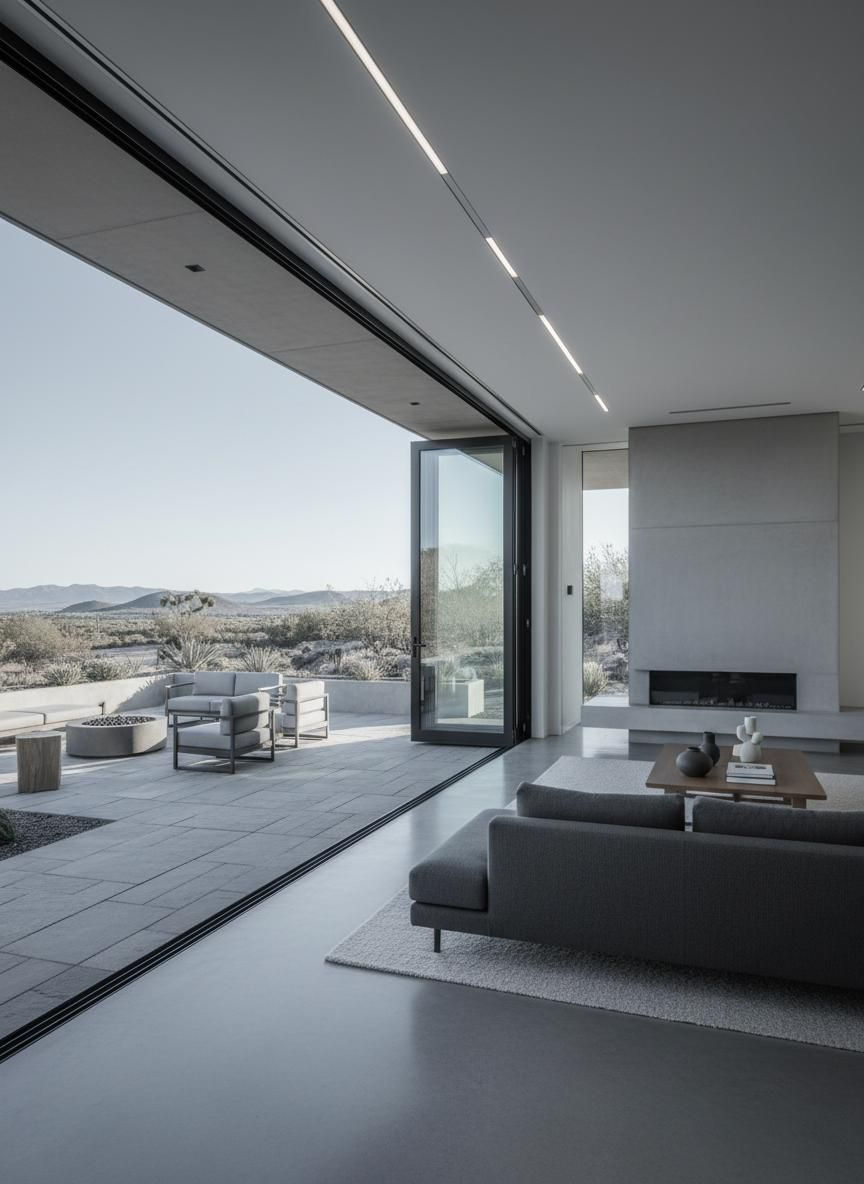

See how architects use Cornerstone systems to open homes to light and landscape
View Project Gallery
Architectural Support & Technical Assistance
System Specifications
Product Recommendations
Project Consultations
Opening Size Guidance
Our technical team works directly with architects and design professionals to support project specifications, opening configurations, and product selection. Contact our team for project consultations, custom sizing, and detailed technical guidance for aluminum bifold doors, sliding glass systems, and architectural window solutions.
